Exposed Fastening Roof and Wall Panels for Durable and Cost-Effective Roofing

What are Exposed Fastening Roof Panels?
Exposed fastening roof panels offer a versatile, durable, and budget-friendly roofing solution. Secured with visible fasteners, these panels are perfect for agricultural, residential, and DIY projects. Available in a range of profiles, they can be installed vertically or horizontally to meet your design and functional needs.

Choose exposed fastening panels for an affordable, reliable roofing solution with unmatched design versatility, ideal for light applications and a variety of project types.

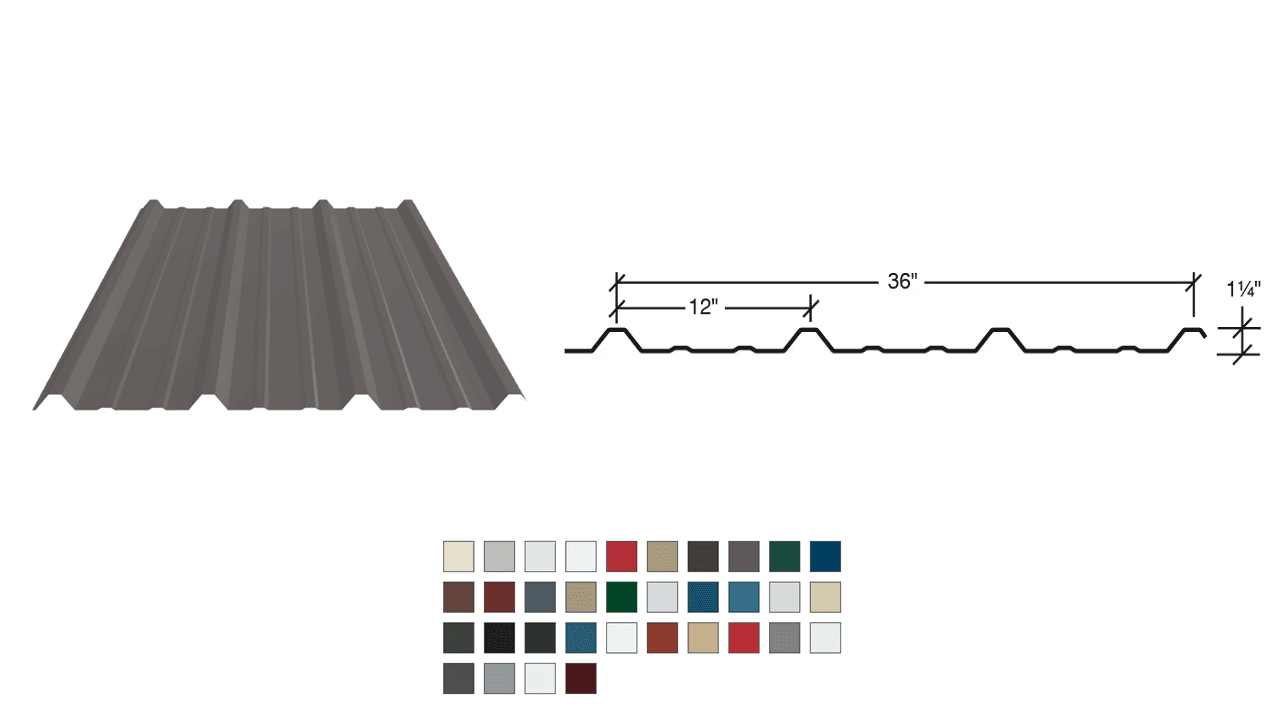

PBR metal panel with 36-inch coverage width and 1¼-inch rib height, showing 12-inch rib spacing and available in multiple color finishes. Designed for exposed fastening systems, supports 1/2:12 minimum slope, and offered in smooth or embossed finish. Coatings include Galvalume Plus® and Signature® series, with lengths from 5 to 50 feet.

PBR PANEL

Coverage Width: 36"

Minimum Slope: 1/2:12

Panel Attachment: Exposed Fastening System

Gauge: 26 (standard); 24, 22 (optional)

Finishes: Smooth (standard); Embossed (optional)

Coatings: Galvalume Plus®, Signature® 200, Signature® 300

Rib Spacing: 12" on center

Rib Height: 1-1/4"

Length: 5'-0" to 50'-0"

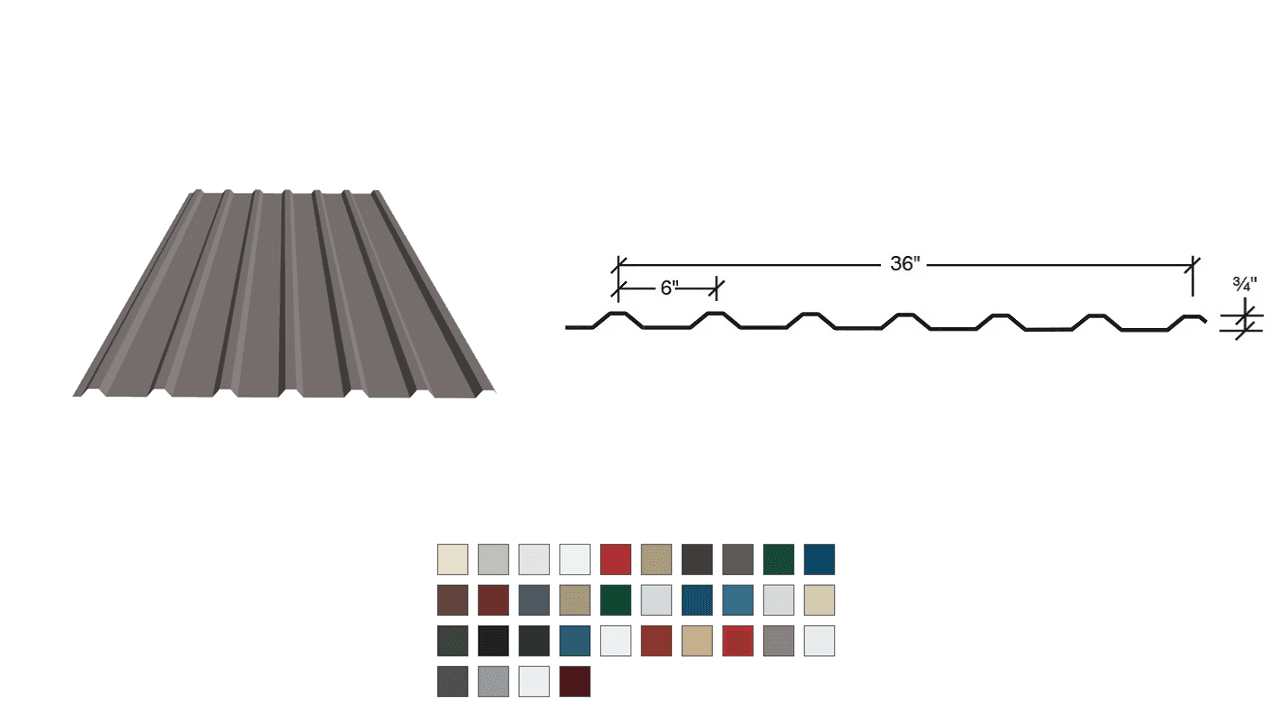

PBU metal panel with 36-inch coverage width, 3/4-inch rib height, and 6-inch rib spacing. Compatible with 1:12 minimum slope applications, it features an exposed fastening system, smooth or embossed finish, and a wide range of colors. Available in 26, 24, or 22 gauge and coated in Galvalume Plus® or Signature® 200/300 finishes with lengths from 5 to 50 feet.

PBU PANEL

Coverage Width: 36"

Minimum Slope: 1:12

Panel Attachment: Exposed Fastening System

Gauge: 26 (standard); 24, 22 (optional)

Finishes: Smooth (standard); Embossed (optional)

Coatings: Galvalume Plus®, Signature® 200, Signature® 300

Rib Spacing: 6" on center

Rib Height: 3/4"

Length: 5'-0" to 50'-0"

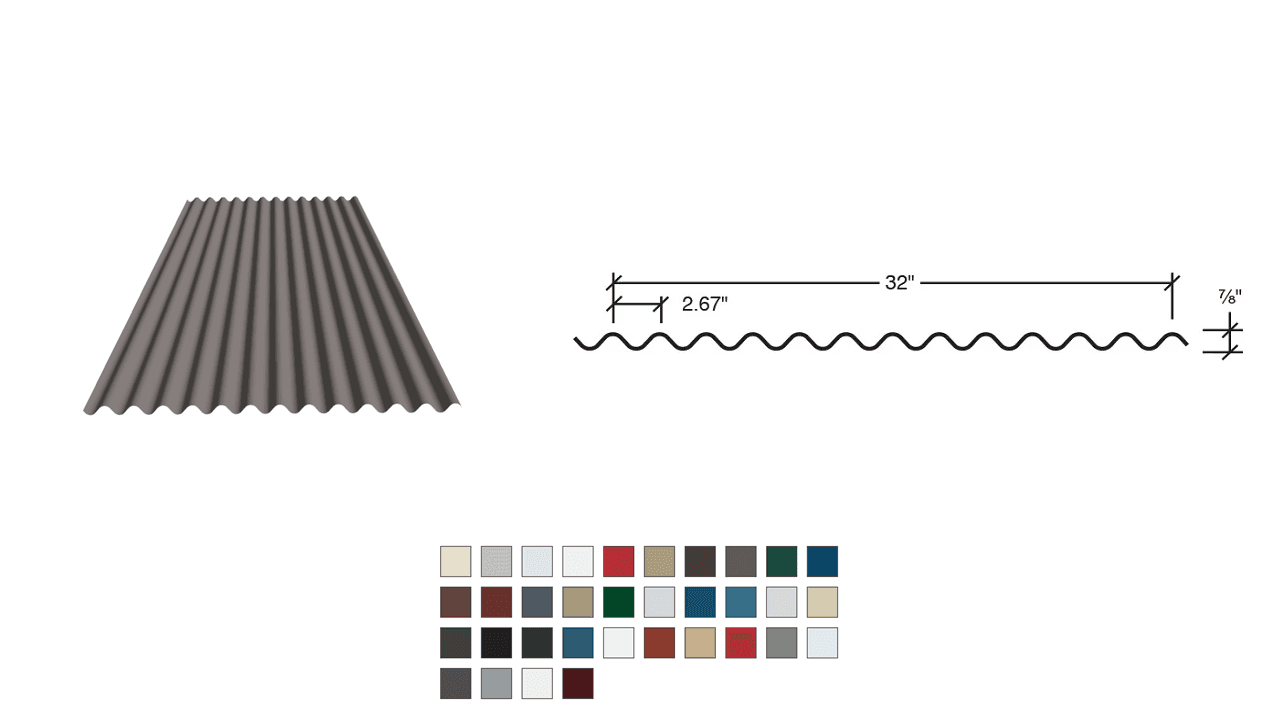

PBC panel with a 32-inch coverage width, 7/8-inch rib height, and 2 2/3-inch rib spacing, designed for a minimum slope of 3:12. Features a smooth or embossed finish with exposed fastening system. Available in 26, 24, or 22 gauge and coated with Galvalume Plus® or Signature® 200/300 finishes. Lengths range from 5 feet to 50 feet with multiple color options.

PBC PANEL

Coverage Width: 32"

Minimum Slope: 3:12

Panel Attachment: Exposed Fastening System

Gauge: 26 (standard); 24, 22 (optional)

Finishes: Smooth (standard); Embossed (optional)

Coatings: Galvalume Plus®, Signature® 200, Signature® 300

Rib Spacing: 2 2/3" on center

Rib Height: 7/8"

Length: 5'-0" to 50'-0"

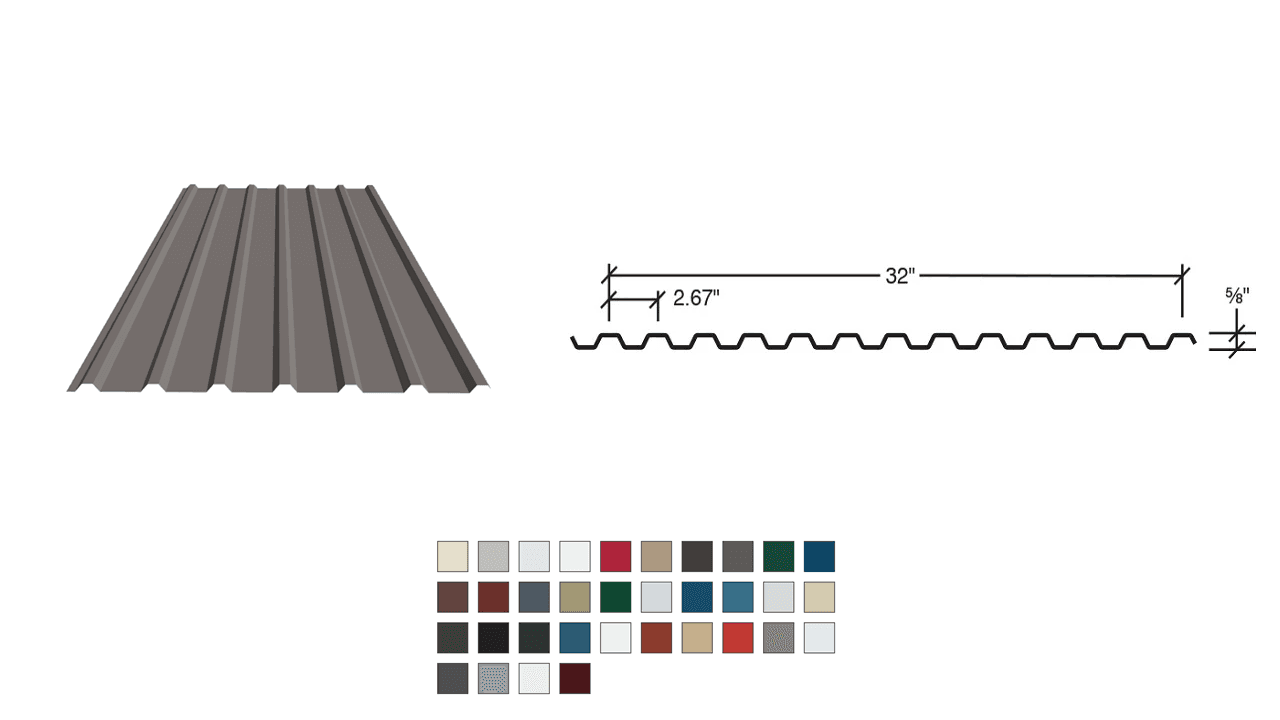

PBD metal panel with 32-inch coverage width and 3:12 minimum slope, featuring exposed fastening, 26-gauge standard steel, optional embossed finish, and available in Galvalume Plus® or Signature® 200/300 coatings. Rib spacing: 2 2/3" on center. Rib height: 5/8". Panel lengths: 5' to 50'.

PBD PANEL

Coverage Width: 32"

Minimum Slope: 3:12

Panel Attachment: Exposed Fastening System

Gauge: 26 (standard); 24, 22 (optional)

Finishes: Smooth (standard); Embossed (optional)

Coatings: Galvalume Plus®, Signature® 200, Signature® 300

Rib Spacing: 2 2/3" on center

Rib Height: 5/8"

Length: 5'-0" to 50'-0"

7.2 exposed fastener metal panel with 36-inch coverage, 1/2:12 minimum slope, 1-1/2" rib height, 7.2" rib spacing, and available in 24-gauge standard or 26/22 optional gauges. Offered in Galvalume Plus®, Signature® 200, Signature® 300, and Signature® 300 Metallic finishes, smooth or embossed. Panel length ranges from 5 to 50 feet.

7.2 PANEL

Coverage Width: 36"

Minimum Slope: 1/2:12

Panel Attachment : Exposed Fastening System

Gauge: 24 (standard); 26, 22 (optional)

Finishes: Smooth (standard); Embossed (optional)

Coatings: Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic

Rib Spacing: 7.2" on center

Rib Height: 1-1/2"

Length: 5'-0" to 50'-0"

Standing Seam Roof Panels for Weather-Resistant and Durable Roofing

What is Standing Seam Metal Roofing?
Standing seam metal roofing is a sleek, durable system with concealed fasteners, offering superior weather resistance and long-term performance. Its innovative design features vertical or trapezoidal legs with flat spaces in between, eliminating exposed fasteners that could lead to leaks or failures. Panels are attached with clamps, ensuring a secure, nail-free installation that prevents moisture penetration and enhances overall durability.

Upgrade to standing seam metal roofing for unmatched durability, modern design, and protection for your next project.

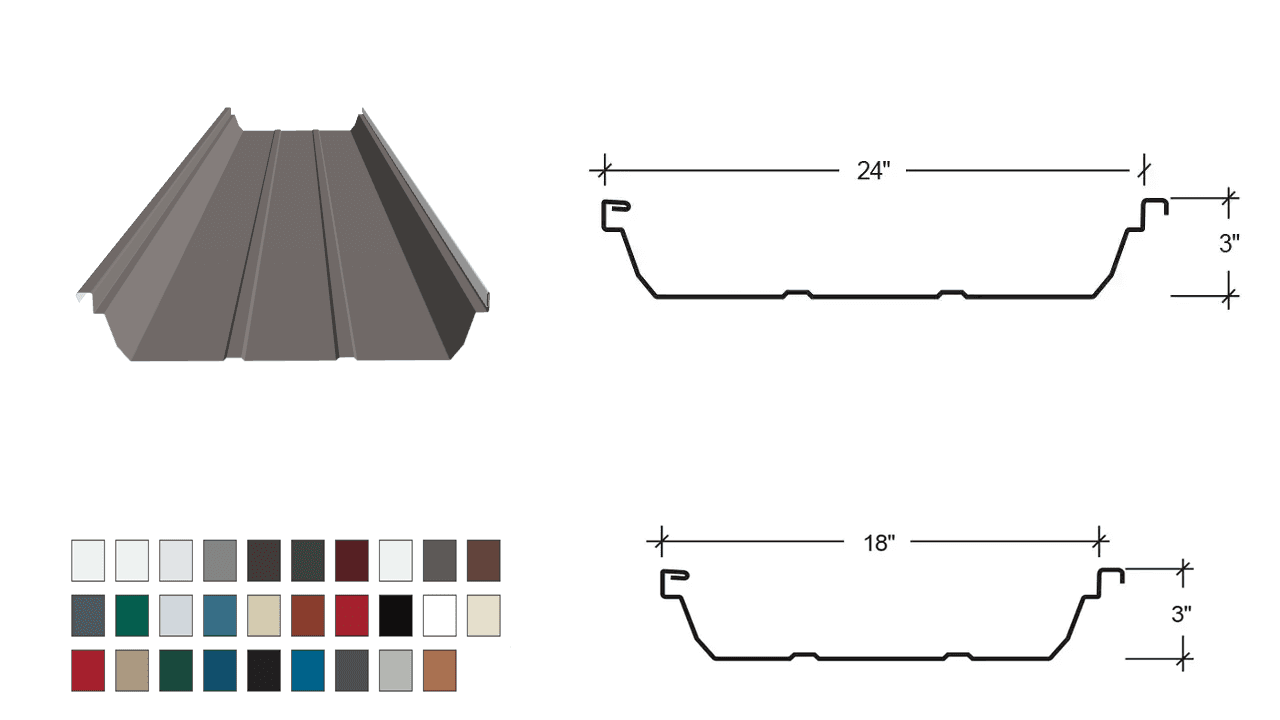

Ultra-Dek® standing seam metal roof panel with 18" or 24" coverage width, 1/4:12 minimum slope, 3" rib height, and concealed fastening system with high or low clips. Standard 24-gauge, optional 22-gauge, offered in Galvalume Plus®, Signature® 200, Signature® 300, and Signature® 300 Metallic finishes with optional embossing.

ULTRA-DEK®

Coverage Width: 18", 24"

Minimum Slope: 1/4:12

Panel Attachment: Concealed Fastening System; Low, High (fixed or sliding)

Gauge: 24 (standard); 22 (optional)

Finishes: Smooth (standard); Embossed (optional)

Coatings: Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic

Illustration of metal roofing panel with dimensions and color options shown.

DOUBLE-LOK®

Coverage Width: 18", 24"

Minimum Slope: 1/4:12

Panel Attachment: Concealed Fastening System; Low, High and 2" Stand Off Sliding Clips

Gauge: 22 and 24

Finishes: Smooth (standard); Embossed (optional)

Coatings: Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic

Illustration of metal panel profiles with dimensions and color options.

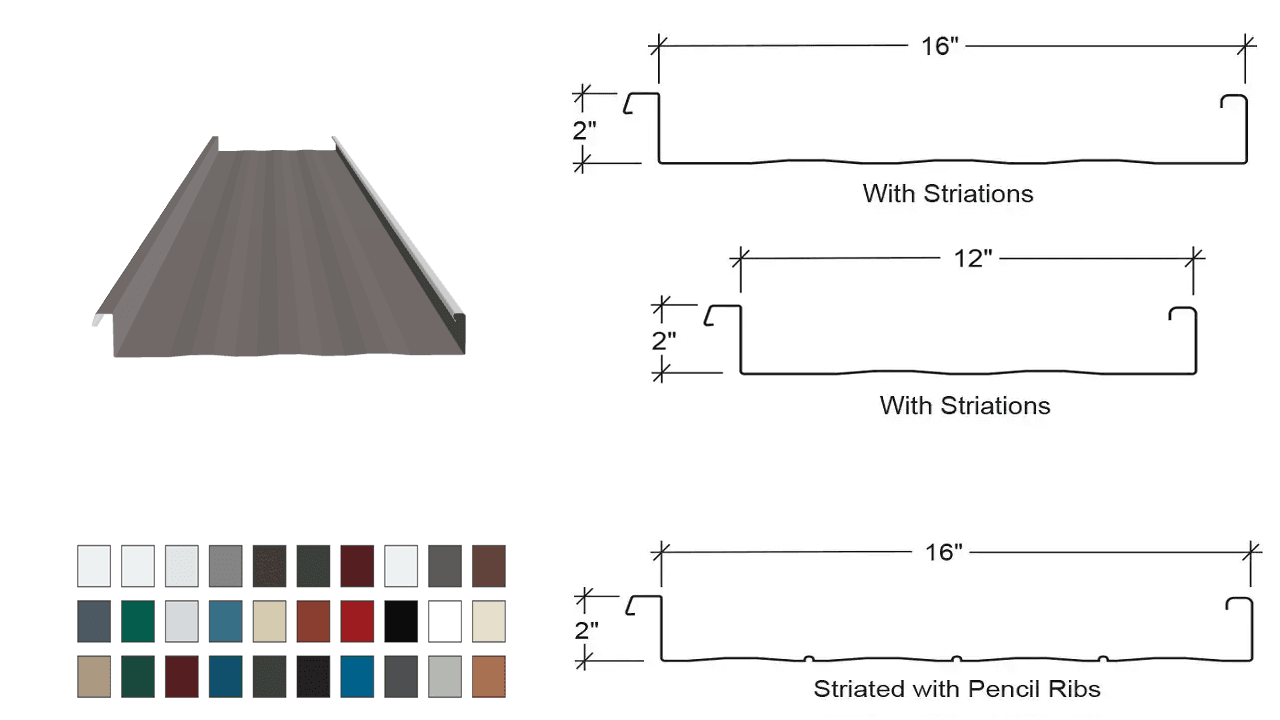

BATTENLOK® HS

Coverage Width: 12", 16"

Minimum Slope: ½:12

Panel Attachment: Concealed Fastening System; Low, High (fixed or floating), Utility (no insulation clearance)

Gauge: 24 (standard); 22 (optional)

Finishes: Smooth or Embossed; with Striations or Striations and Pencil Ribs

Coatings: Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic

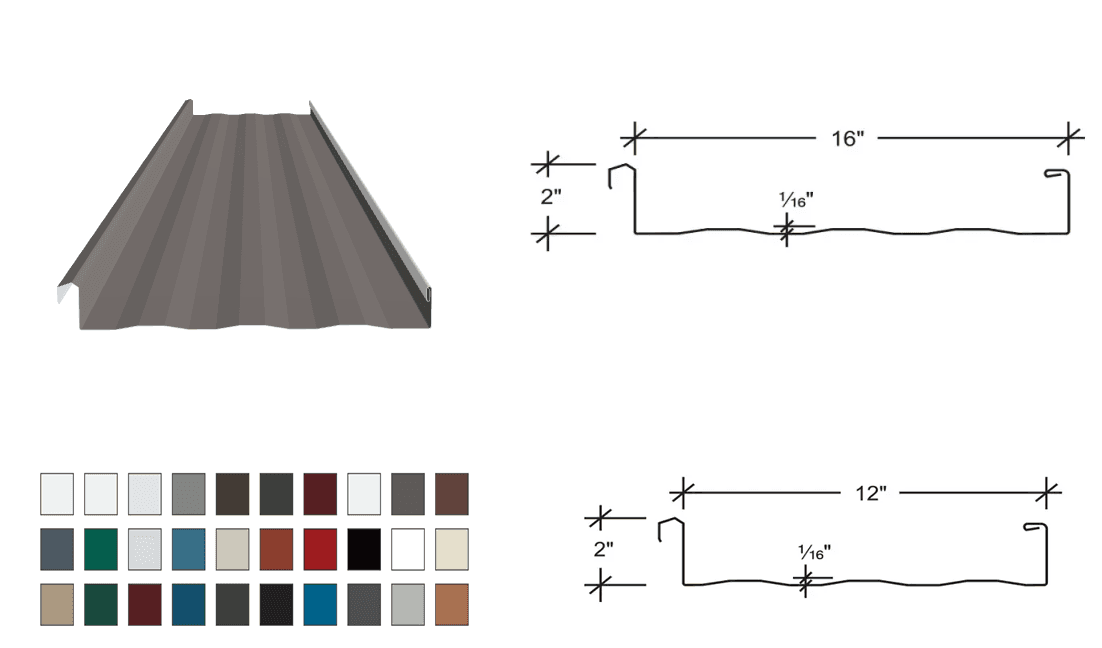

SuperLok® standing seam roof panel with 12" or 16" coverage width, 1/2:12 minimum slope, and 2" rib height. Features concealed fastening system with high, low, or utility clip options. Available in 24-gauge standard, 26 and 22-gauge optional, with striated or embossed striated finish. Coatings include Galvalume Plus®, Signature® 200, Signature® 300, and Signature® 300 Metallic.

SUPERLOK®

Coverage Width: 12", 16"

Minimum Slope: 1/2:12

Panel Attachment: Concealed Fastening System; Low, High (fixed or floating), Utility (no insulation clearance)

Gauge: 24 (standard); 26, 22 (optional)

Finishes: Striated (standard); Embossed Striated (optional)

Coatings: Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic

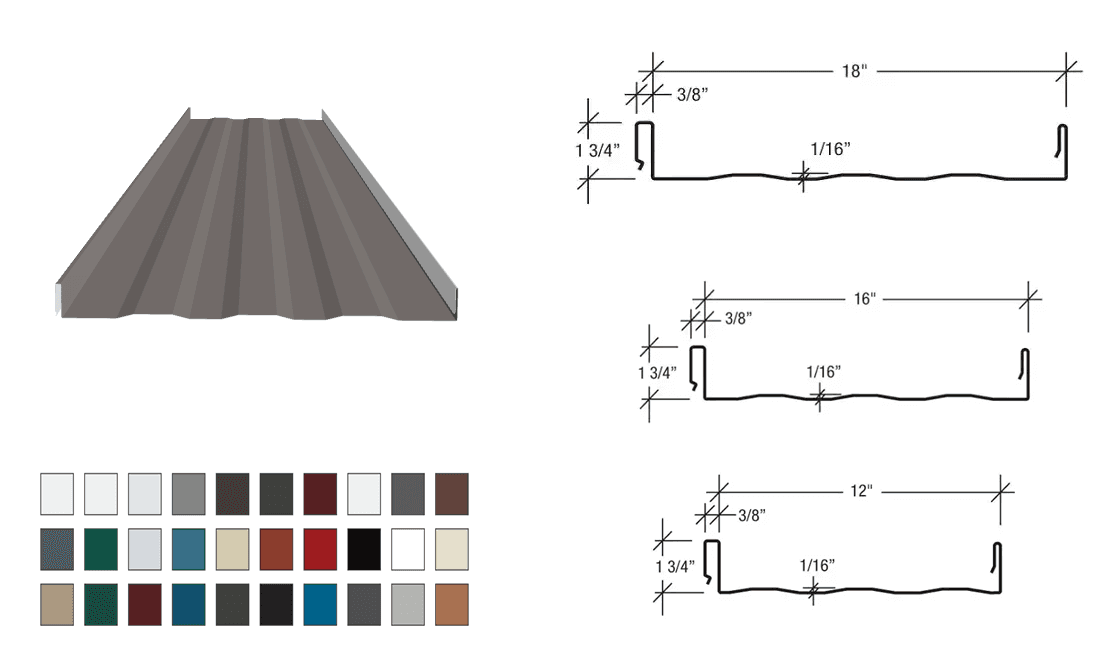

LokSeam® concealed fastener standing seam metal panel with 12", 16", and 18" coverage widths, 3:12 minimum slope, and 1-3/4" rib height. Compatible with standard and UL90 clips. Offered in 24-gauge standard, 26-gauge (12"), and 22-gauge (12", 16", 18") options. Available in striated and embossed striated finishes with Galvalume Plus®, Signature® 200, Signature® 300, and Signature® 300 Metallic coatings.

LOKSEAM®

Coverage Width: 12", 16", 18"

Minimum Slope - 3:12

Panel Attachment: Concealed Fastening System, Standard and UL90 Clips

Gauge:24 (standard);26 (12") 22 (12", 16", 18") (optional)

Finishes: Striated (standard); Embossed Striated (optional)

Coatings: Galvalume Plus®, Signature® 200, Signature® 300, Signature® 300 Metallic
